Carbon Fiber Tubes for Lightweight, Rigid Robotic Structures

A robotic structure needs to carry its payload without carrying unnecessary weight of its own. Reaction Composites carbon fiber tubes combine low material density with a laminate designed primarily for axial stiffness, providing a useful foundation for robot links, positioning arms, gripper extensions, inspection equipment, and automation assemblies.

Low-angle carbon fiber reinforcement provides stiffness along the tube’s length, while an outer ±45° layer contributes off-axis reinforcement and tube-wall stability. This construction supports applications where both structural weight and deflection influence performance.

Start tube selection with the payload, reach, acceleration, and allowable movement at the tool or sensor. Longer extensions place greater demands on bending stiffness. Increasing diameter can be an efficient way to reduce deflection, while wall thickness must also accommodate loads, connections, and local stresses.

4-inch bore / finite element design study

A larger bore. Less moving mass.

This study compares a 4.000″ ID × 4.350″ OD carbon tube with a 0.175″ wall against a 4.000″ ID × 4.250″ OD aluminum tube with a 0.125″ wall. Both have a 24″ cantilever span and a 100 lbf end load. The carbon model uses a specified axial modulus of 60 GPa for this larger tube construction.

19%less tube mass than aluminum in this model
0.0179″modeled mean carbon tip deflection at 100 lbf
3.08 lbcarbon tube mass over the 24-inch span

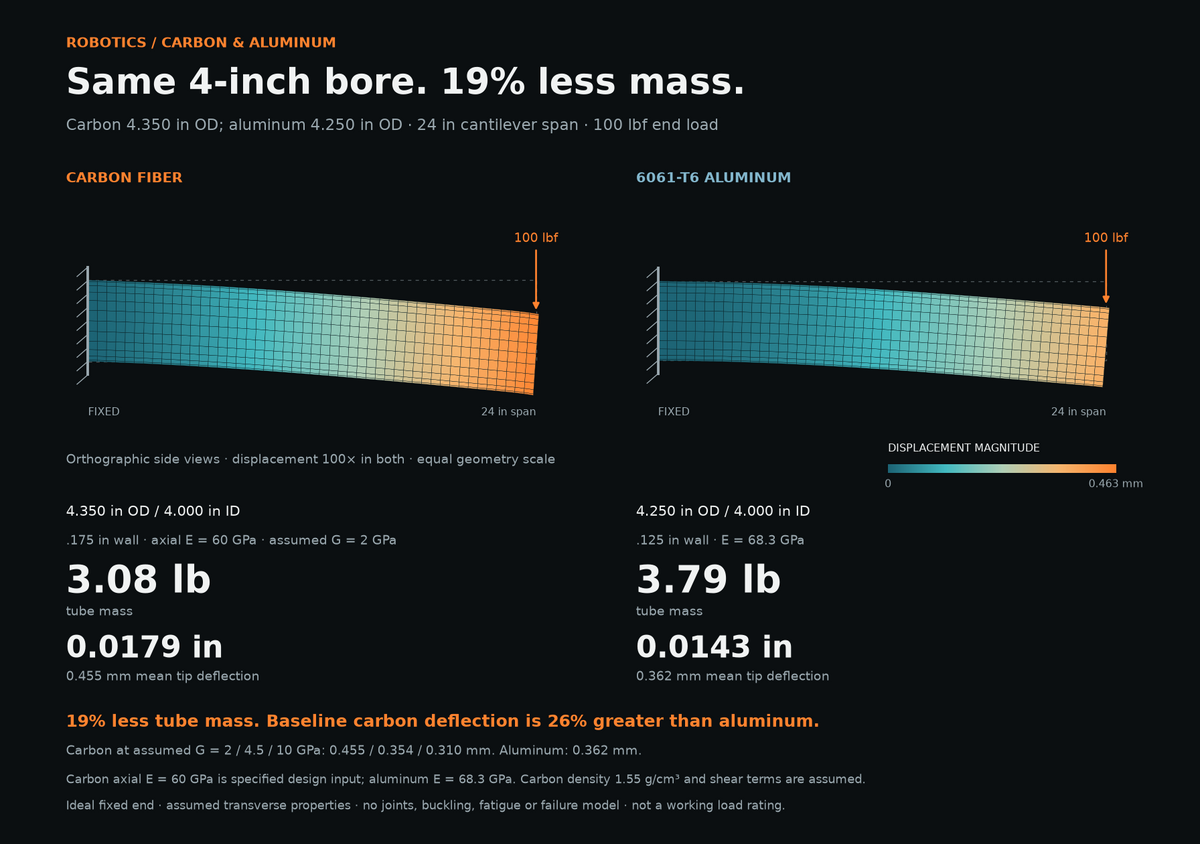

Four-inch bore comparison: 4.350-inch OD carbon and 4.250-inch OD aluminum under a 100-pound load over a 24-inch cantilever, shown from the side at equal scale
The carbon tube is 19% lighter: 3.08 lb versus 3.79 lb for aluminum. With the assumed carbon axial shear modulus of 2 GPa, modeled mean tip deflection is 0.0179″ for carbon and 0.0143″ for aluminum. This configuration saves mass; it does not provide lower deflection under the baseline assumptions.
Model assumptions and material references

Solved with CalculiX quadratic 3D solid elements. The carbon axial modulus of 60 GPa is a specified design input for this larger tube, not the 45 GPa stock-tube value. Carbon density of 1.55 g/cm³, transverse modulus of 8.3 GPa, axial shear modulus of 2 GPa, and Poisson ratios are modeling assumptions for this custom section. Aluminum uses E = 68.3 GPa, density = 2.70 g/cm³, and Poisson ratio = 0.33. Tube masses exclude mounts and fittings.

The fixed end is idealized and the 100 lbf load is distributed across the end face. Mesh refinement and independent beam calculations were checked. Carbon shear stiffness materially affects this short, large-diameter tube: changing the assumed axial shear modulus from 2 to 4.5 or 10 GPa gives approximately 0.0140″ or 0.0122″ mean tip deflection. These shear values are sensitivity cases, not measured properties or guaranteed bounds. Joints, local buckling, fatigue, damage, and failure were not assessed; these sizing estimates do not establish working load ratings.

Aluminum reference properties: 6061 alloy — Kaiser Aluminum

Span, rigidity, and weight

Size the tube for its actual reach.

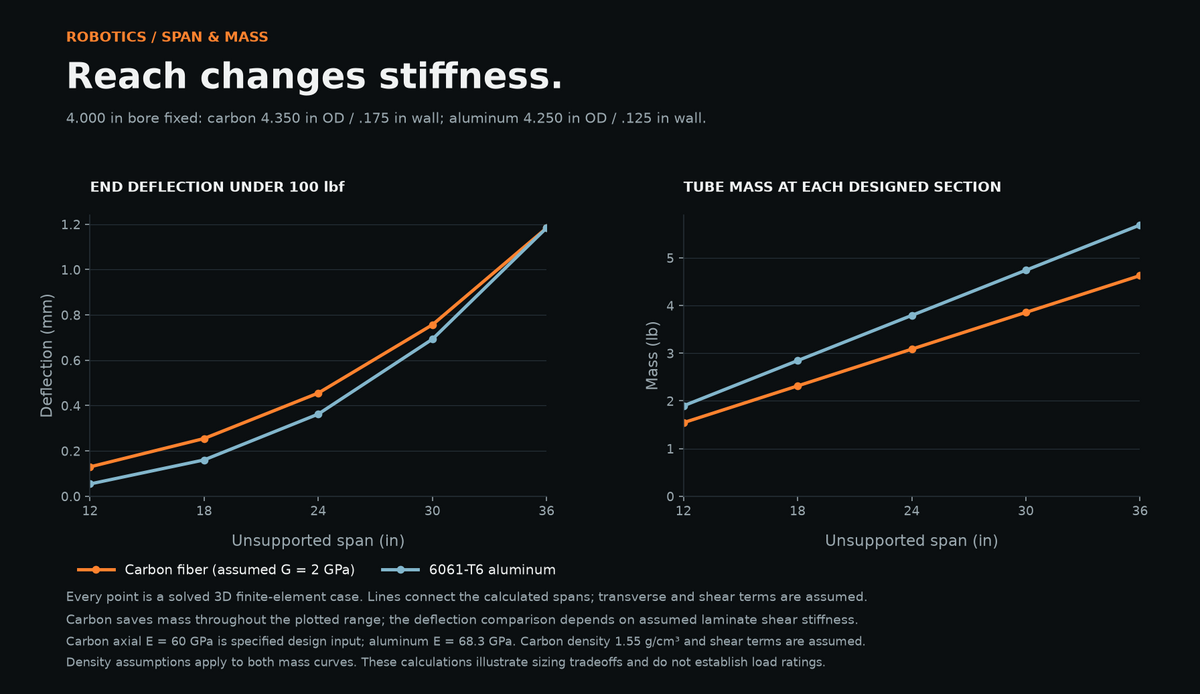

Tube mass and modeled end deflection versus span for 4-inch ID carbon and aluminum tubes, using 4.350-inch and 4.250-inch outside diameters respectively
Every point is a solved 3D finite element case under a 100 lbf end load. The bore remains 4.000″: carbon is 4.350″ OD at a specified 60 GPa axial modulus and assumed 2 GPa axial shear modulus; aluminum is 4.250″ OD at 68.3 GPa. Density is assumed at 1.55 g/cm³ for carbon and 2.70 g/cm³ for aluminum. The comparison shows how span changes deflection and tube mass.

The connections deserve as much attention as the tube. Bonded inserts, clamps, and mounting brackets must transfer loads without introducing excessive joint movement or concentrated crushing forces. Carbon fiber is electrically conductive, so consider electrical and galvanic isolation where appropriate.

For mechanisms carrying significant torque, discuss the loading with us so we can evaluate whether the stock architecture or a custom winding configuration is the better fit.
